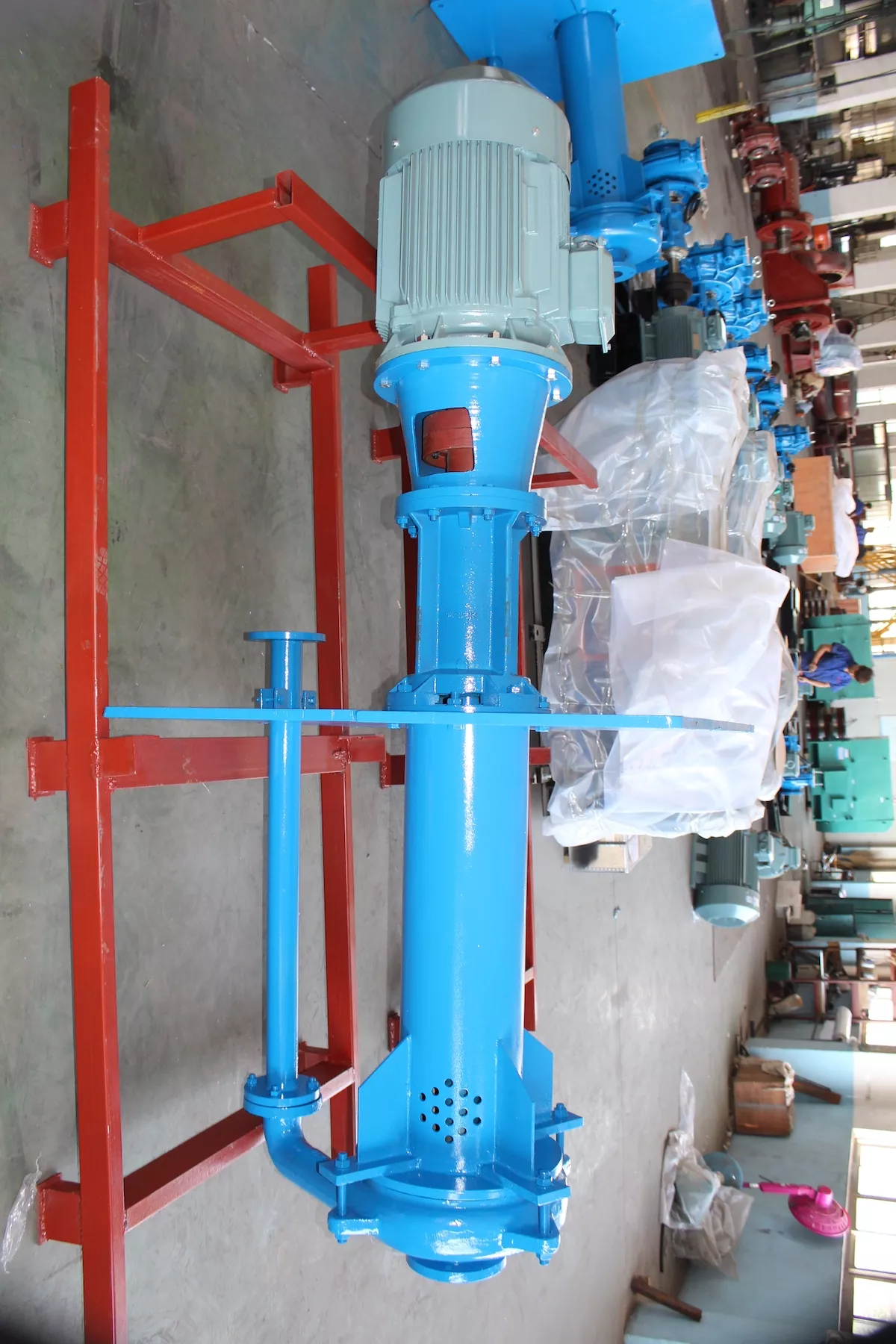

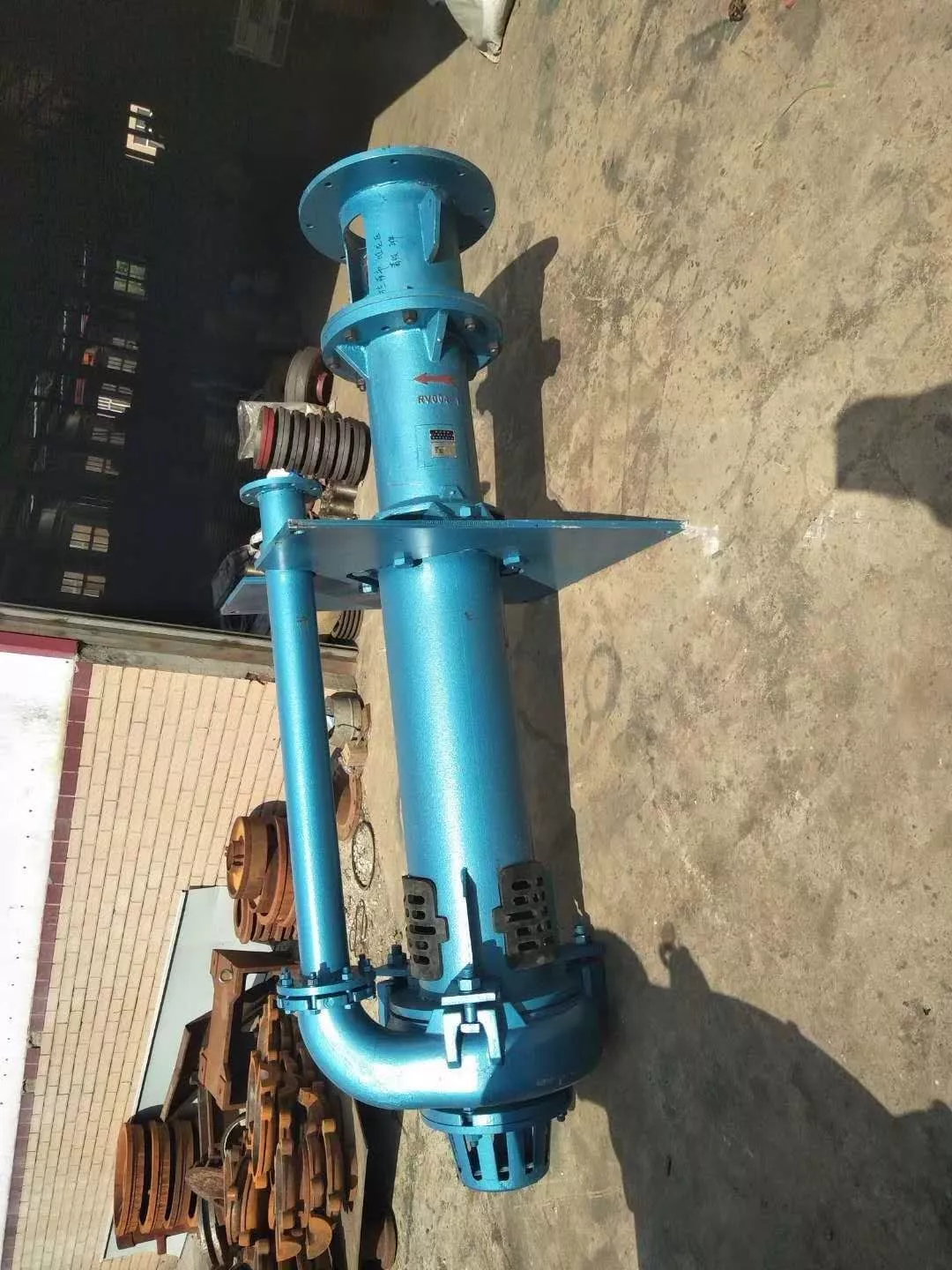

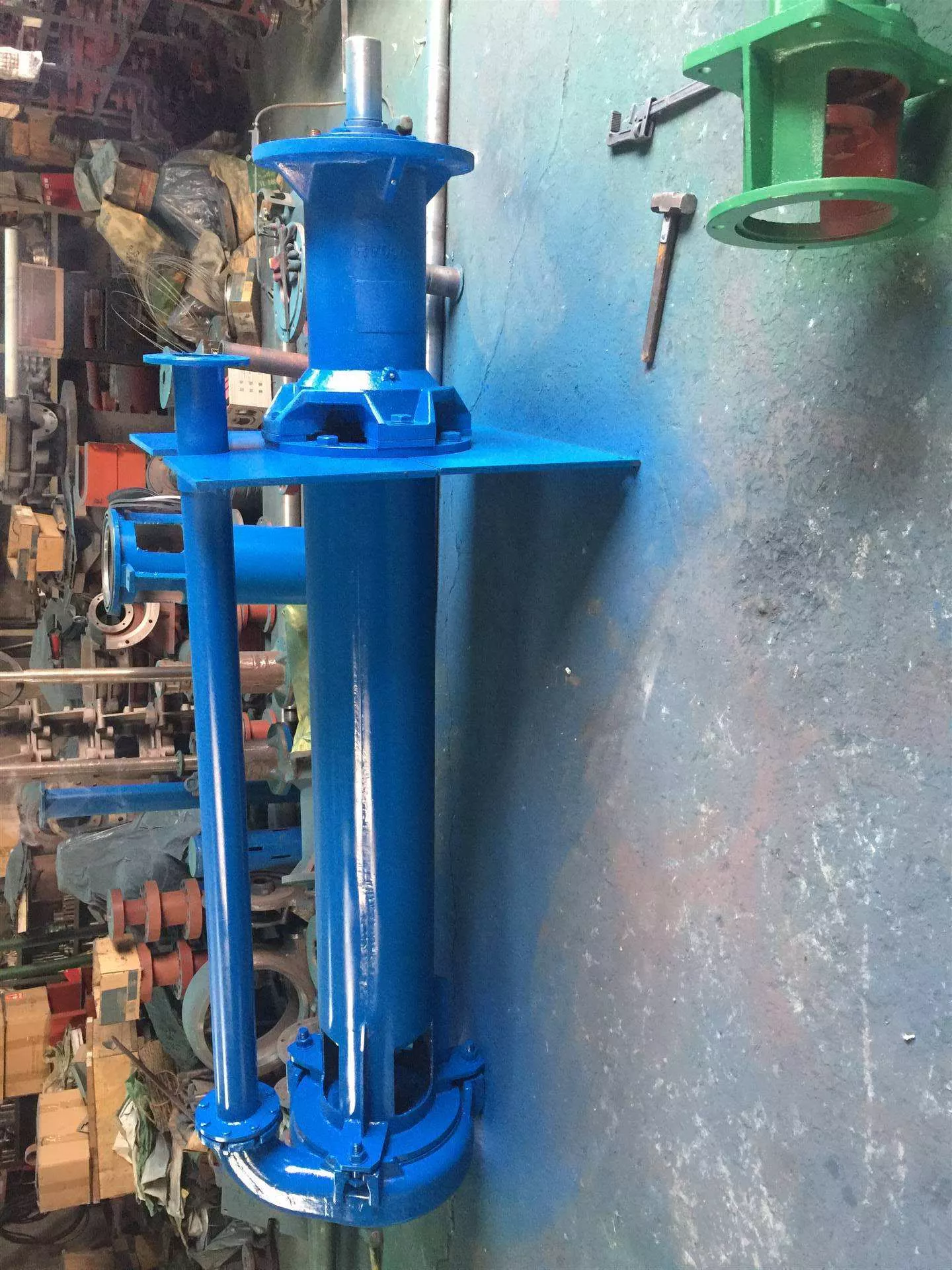

ZJL series vertical slurry pump adopts vertical, axial suction, single-stage single suction, single pump casing and centrifugal structure, suitable for the working conditions where the flow quantity is within 4m3/h-360m3/h and the head within 3m-82m, which can be used as absorption tower large slurry circulating pump, limestone slurry delivery pump, gypsum bleeding pump, recovery pump, pit pump, etc.
Application
Applicable conditions
1. PH value of slurry: 2.5-13
2. Chloride ion concentration: ≤60000ppm
3. weight concentration: ≤60%
4. medium temperature: ≤120℃

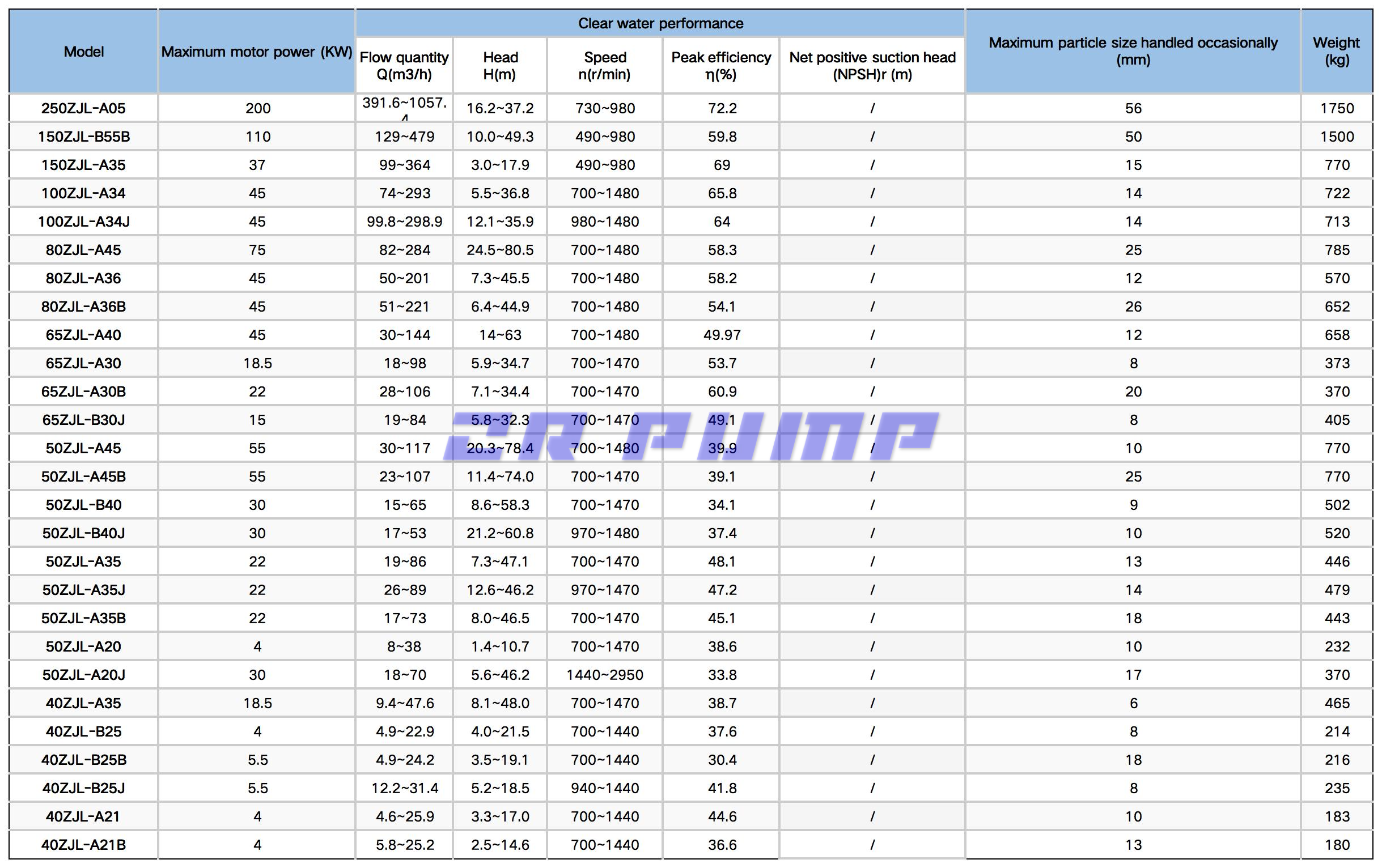

Parameter
All dimensions are in millimeters (mm)
